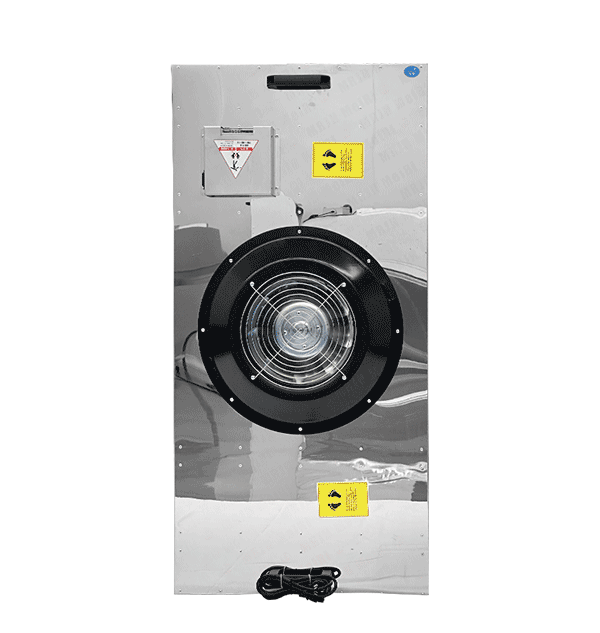

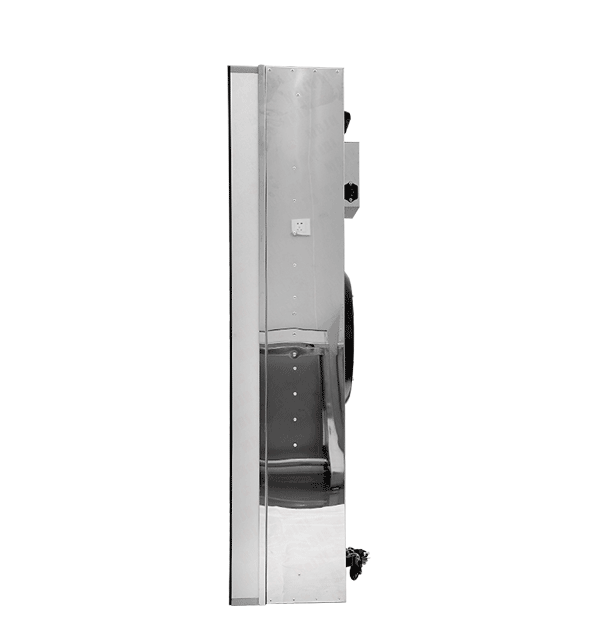

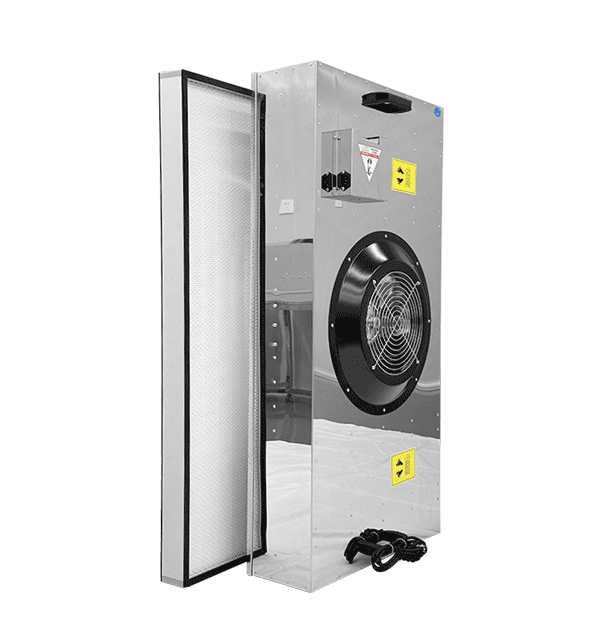

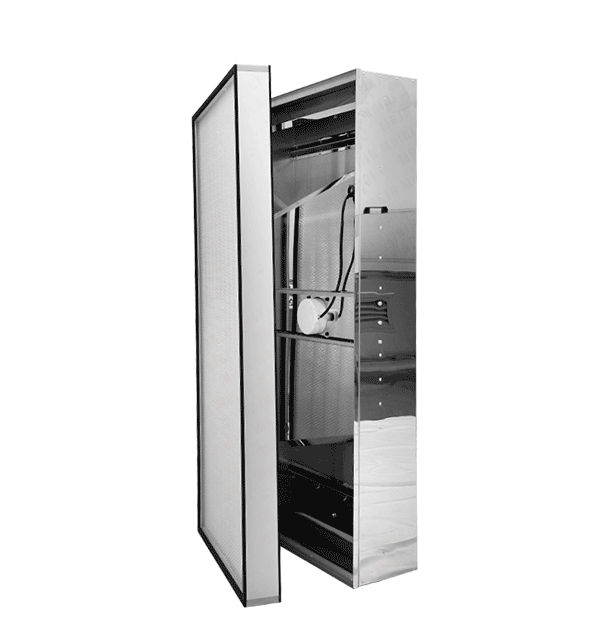

Mirror Stainless Steel EC FFU

A Mirror Stainless Steel EC FFU (Fan Filter Unit) is a specialized ventilation device used in cleanroom environments to maintain air quality and control particle contamination. It is constructed with a mirror stainless steel housing, which provides enhanced durability, cleanliness, and aesthetic appeal.

clean room hepa filter,fan filter units,Mirror stainless steel DC FFU

Product Introduction:

Filter Type	HEPA High-Efficiency Filter	Product Name	304 Stainless Steel DC FFU
Aluminum Frame Material	Fan sold separately	Enclosure Material	Mirror finish 304 stainless steel
Filter Efficiency	99.99% @ 0.3μm (H13)	Air Velocity	0.45-0.75m/s
Rated Frequency	50Hz	Purification Efficiency	99.99%
Rated Voltage	220V	Rated Power	150W~195W
Sterilization	99.99%	Motor Warranty	5 years
Air Volume	1000m³/H	Product Noise Reduction	32-48 dB
Purification Level	Class 300,000 to Class 100	Dimensions	1175X575X380
Filter Size	1170X570x69	Control Method	Group control module

Key features of a Mirror Stainless Steel EC FFU include：

1、Mirror Stainless Steel Enclosure
The entire enclosure is made of mirror-finished 304 stainless steel, providing excellent rust resistance, corrosion resistance, lightweight construction, and durability.

2、Group Control Module
Connects to the network to control and regulate FFUs (Fan Filter Units) in a centralized manner through a control panel or control box.

3、Insulated carrying handle
Taking care of every detail to ensure peace of mind and convenient use.

4、Safety protective net
Prevents direct contact with the fan blades.

5、Glass Fiber Filter Cartridge
High-efficiency filtration with a precision range of 0.3-0.12 microns (optional).

6、Japanese imported DC motor
Equipped with a Japanese imported DC sealed motor, featuring strong temperature control capability and long lifespan.

Mirror Stainless Steel EC FFU Details

clean room hepa filter,fan filter units,Mirror stainless steel DC FFU

Mirror Stainless Steel EC FFU Applications

clean room hepa filter,fan filter units,Mirror stainless steel DC FFU

Mirror stainless steel DC FFU Parameter

Model	M-R570X	M-R570	M-R1175
Keel Size	W600*L600	W1200*L600	W1200*L1200
Box Size	W575L575H215	W1175L575H215	W1175L1175H290
HEPA Size	W570L570H69	W1175L570H69	W1170L1170H69
Efficiency	99.99%-99.9999999%@0.3-0.12um(H13-U17)【class10-class100】
Air Speed	0.45-0.75m/s
Noise	52-58dB±5DB
Motor Life-Span	Development based on 8 years / factory warranty for 5 years
Housing Material	Aluminized Zinc Plate/ Powder coated cold rolled Steel plate /SUS 201/SUS 304 (Standard is Aluminized Zinc Plate )
Power Supply	220V50Hz(150-190w±5W/motor)
High-Efficiency HEPA	H13-U17 (standard as H13)
