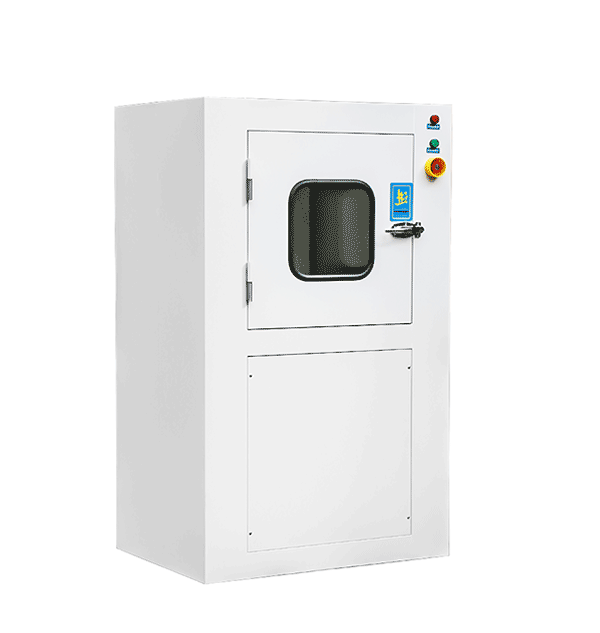

Air-shower-pass-box--5

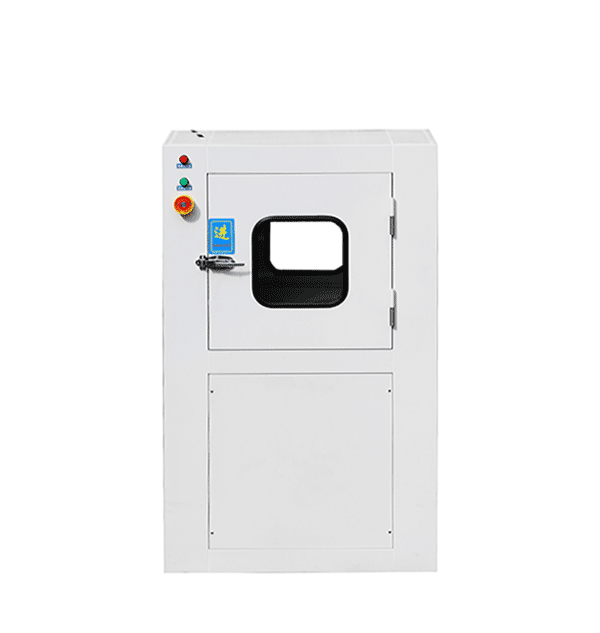

Air-shower-pass-box--4

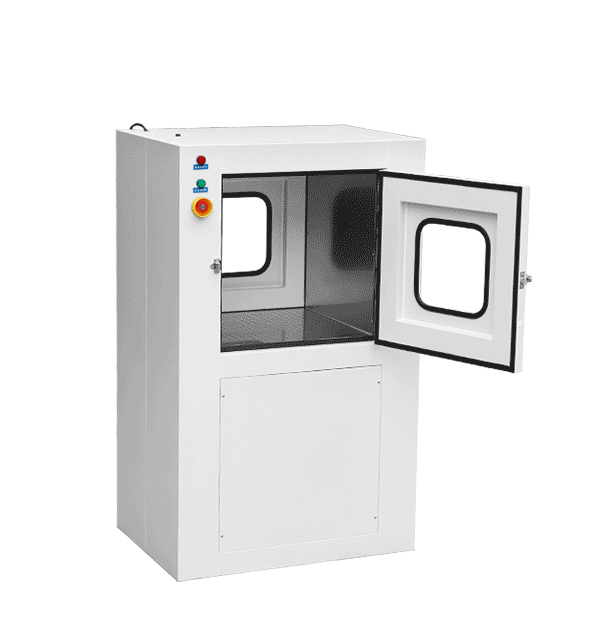

Air-shower-pass-box--3

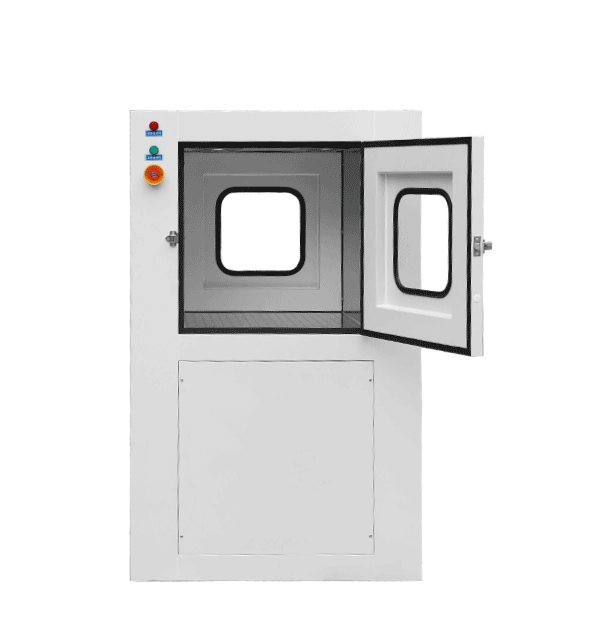

Air-shower-pass-box--2
Air-shower-pass-box--1

Air Shower Pass Box



An Air Shower Pass Box is a specialized equipment used in controlled environments such as cleanrooms, laboratories, and manufacturing facilities to minimize contamination during the transfer of materials. It is designed to remove particulate contaminants from the surface of objects before they enter or exit a cleanroom.



Air Shower Pass Box



Common features:



Eliminate bacteria:99.99%



Internal corner design for easy cleaning.



Tempered glass see-through window EVA high performance sealing.



Interlocking Method:Mechanical interlockin/Electronic interlocking



Optional Configuration:can be made of 304 stainless steel / can be equipped with germicidal lamp / can be equipped with buzzer / can be paired with a radio



Key features of a Air Shower Pass Box Box include:


1、Cold-rolled Steel with Baked Enamel Coating Outer Casing
The overall structure material is made of cold-rolled steel with a baked enamel coating, which is rust-proof, corrosion-resistant, lightweight, and sturdy.



2、High-quality Sheet Material
The double doors are equipped with a wide-angle view, double-thickened tempered glass, providing a clear, transparent, and bright observation window.



3、Ultraviolet Germicidal Lamp
Embedded integrated ultraviolet germicidal lamp, capable of efficient sterilization, convenient replacement, and aesthetically pleasing appearance.



4、Magnetic Sealing Adhesive
The perimeter of the transfer window is sealed with EVA sealing material, providing excellent sealing effectiveness.



Air Shower Pass Box Details




Air Shower Pass Box



Air Shower Pass Box Applications




Air Shower Pass Box

Air Shower Transfer Window Parameter



Mode

M-RCDC600F

M-RCDC800F

M-RCDC1000F

External size(W*L*H)

950* 680* 1550

1150* 880* 1750

1350* 1080*1950

Internal size(W*L*H)

600* 600* 600

800* 800* 800

1000* 1000* 1000

Box material

external cold-rolled steel with paint coating/internal stainless steel   full stainless steel

Interlocking mode

Mechanical interlock/lectronic interlock (commonly mechanical interlock)

optional configuration

Stainless Steel 304 Construction/Compatible with Sterilization Lamp/Compatible with Buzzer/Compatible with Walkie-Talkie/Floor-standing/Height Adjustable.

Cleanliness level

Class100@0.3um

Air speed

13~25m/s

Air shower time

0-99S adjustable (factory setting10s)

Number of nozzles

4pcs

4pcs

6pcs

Power supply

380V50Hz/1.5kw

Dimensions(W*L*H)

950* 680* 1550

1150* 880* 1750

1350* 1080*1950

Internal Size (W*L*H)

600* 600* 600

800* 800* 800

1000* 1000* 1000

Man Body Material

Outer cold plate paint/inner stainless steel or all stainless steel

Interlocking Method

Mechanical interlocking or electronic interlocking (normally mechanical interlocking)

Optional Configuration

can be made of all 304 stainless steel / can be equipped with germicidal lamp / can be equipped with buzzer / can be paired with radio / can be floored / can be raised and lowered

Cleanliness

class 100@0.3um

Outlet Wind Speed

13~25m/s

Number of nozzles 4 6

Power Supply

380V50Hz/1.5kw



12 Years Experience || 30,000 Square Meter Factory || Premium Materials





 One-On-One Engineer Service. Welcome you to leave your email.

Air Shower Pass Box

  • Material
    Aluminum/Cold plate paint/Stainless steel
  • OEM
    Yes
  • Warranty
    2 Years
  • Customized
    Function/Style
