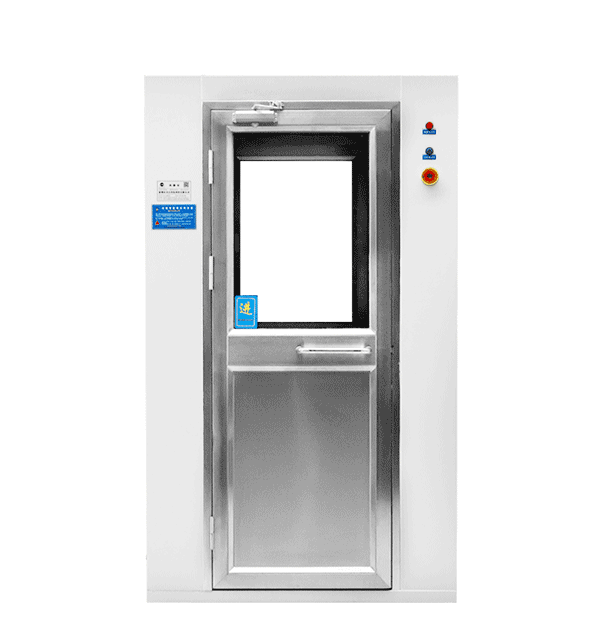

Powder Coated Steel Air Shower



Our Powder Coated Steel Air Shower combines the benefits of rotating spray nozzles, LED lighting, an intelligent touch screen, a high-speed centrifugal fan, an emergency stop button, and a door closer to provide you with a comprehensive and efficient air shower experience. Whether it's in cleanrooms, laboratories, or other controlled environments, our Air Shower Room ensures a contamination-free and safe environment for personnel and processes.



Powder Coated Steel Air Shower



Product Introduction:



Product Name

Powder Coated Steel Air Shower Control Method 3Electronic interlocking + Photoelectric sensing + Voice prompt air shower
Cabinet Material Stainless steel / Cold-plate paint Inner Frame Material 304/201 stainless steel
Air Shower Velocity 13-25m/s Rated Power 1.5kW
Nozzle Configuration 12 Rated Voltage 380V/50Hz
Internal Dimensions 790mm x 860mm x 1930mm External Dimensions 1240mm x 1000mm x 2100mm
Filter Efficiency 0.3um 99.999% H13 Air Shower Time 10-99 seconds (adjustable)



Key features of a Powder Coated Steel Air Shower include:

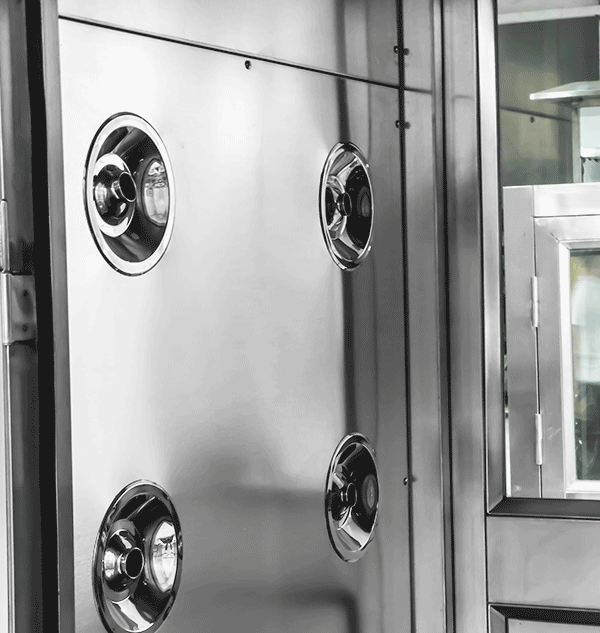

  1. Rotating Spray Nozzles: Our Air Shower Room is equipped with rotating spray nozzles that ensure thorough and consistent air coverage. The rotating feature ensures that every corner of the room receives an even air shower, effectively removing dust particles and contaminants from surfaces and personnel.

  2. LED Lighting: For optimal visibility and a well-lit environment, our Air Shower Room is equipped with high-brightness LED lights. These lights provide clear illumination, allowing you to easily inspect and navigate the room during the air shower process.

  3. Intelligent Touch Screen: With our user-friendly intelligent touch screen interface, controlling and adjusting the air shower parameters is effortless. You can easily set the duration, airflow velocity, and other customizable settings to meet specific requirements, enhancing the efficiency and effectiveness of the air shower process.

  4. High-Speed Centrifugal Fan: Our Air Shower Room features a high-speed centrifugal fan, ensuring powerful and uniform airflow throughout the room. This high-velocity air effectively removes contaminants from surfaces and personnel, promoting a clean and sanitized environment.

  5. Emergency Stop Button: Safety is a top priority in our Air Shower Room. We have included an emergency stop button for immediate power cutoff in case of any unforeseen circumstances. This ensures the well-being of personnel and allows for quick response to emergencies.

  6. Door Closer: To maintain the integrity of the air shower environment, our Air Shower Room is equipped with a high-quality door closer. The door closer ensures that the door automatically closes after entry or exit, preventing external contaminants from entering and maintaining a controlled and clean environment inside the room.

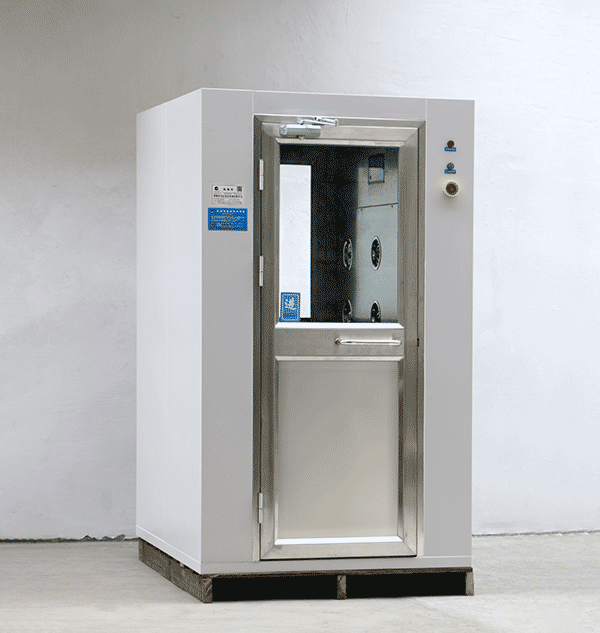

Powder Coated Steel Air Shower Details




Powder Coated Steel Air Shower

Powder Coated Steel Air Shower



Powder Coated Steel Air Shower Applications


Powder Coated Steel Air Shower



Paint Air Shower Room Parameter



Mode

M-RFLS1000

M-RFLS2000

M-RFLS3000

External size(W*L*H)

1240*1000×2100

1240*2000×2100

1240*3000×2100

Internal size(W*L*H)

790*860*1930

790*1860*1930

790*2860*1930

Box material

external cold-rolled steel with paint coating/internal stainless steel   full stainless steel

Cleanliness level

99.99@0.5um (depending on the environment used)

Air speed

13-25m/s

Nozzle configuration

12pcs

24pcs

36pcs

Applicable Person

For one person

For 1-2 persons

For 2-4 persons

Air shower duration

Air shower duration

Fan power supply

380V50Hz

Fan power

1500W/1 unit

1500W/2 units

1500W/3 units

Control mode

Voice prompt for blow-off/Electronic interlock/Photoelectric sensing

Primary efficiency/High efficiency

Each 1 piece

Each 2 pieces

Each 3 pieces



12 Years Experience || 30,000 Square Meter Factory || Premium Materials





 One-On-One Engineer Service. Welcome you to leave your email.

Powder Coated Steel Air Shower

  • Material
    Aluminum/Cold plate paint/Stainless steel
  • Customized
    Function/Style
  • OEM
    Yes
  • Warranty
    2 Years
