Dual Fans FFU Fan Filter Unit
A Dual Fans FFU (Fan Filter Unit) is a specialized ventilation device commonly used in cleanroom environments to maintain air quality and control particle contamination. It is an advanced version of the traditional FFU, featuring two integrated fans instead of a single fan. This dual-fan configuration offers enhanced airflow performance and improved efficiency in air filtration.
Product Introduction:
Filter Type |
HEPA High-Efficiency Filter | Product Name | Dual Fan FFU |
Aluminum Frame Material | Fan sold separately | Enclosure Material | Aluminum-Zinc Plated Sheet |
Filter Efficiency | 99.99% @ 0.3μm (H13) | Air Velocity | 0.45-0.75m/s |
Rated Frequency | 50Hz | Purification Efficiency | 99.99% |
Rated Voltage | 220V | Rated Power | 150W~195W |
Sterilization | 99.99% | Motor Warranty | 5 years |
Air Volume | 1000m³/H | Product Noise Reduction | 32-48 dB |
Purification Level | Class 300,000 to Class 100 | Dimensions | 1175X575X320 |
Filter Size | 1170X570x69 | Control Method | Mechanical Knob Switch |
Key features of a Dual Fans FFU Fan Filter Unit include:
1、Dual-Fan Configuration: The unit incorporates two fans that work in tandem to generate a higher volume of airflow. This dual-fan setup increases the air circulation within the cleanroom, ensuring better distribution of filtered air and improved overall efficiency.
2、Increased Airflow Capacity: With the dual fans working together, the Dual Fans FFU can achieve a higher airflow capacity compared to a single-fan FFU. This allows for quicker air exchange rates and more effective removal of airborne particles and contaminants.
3、Redundancy and Reliability: The presence of two fans provides redundancy in case one fan fails. If one of the fans malfunctions, the other fan continues to operate, ensuring uninterrupted airflow and maintaining the required cleanliness levels in the cleanroom environment. This dual-fan redundancy enhances the reliability and continuity of the ventilation system.
Energy Efficiency: Despite having two fans, Dual Fans FFUs are designed to be energy-efficient. They often feature energy-saving motors and optimized airflow designs to minimize power consumption while maintaining high filtration efficiency.

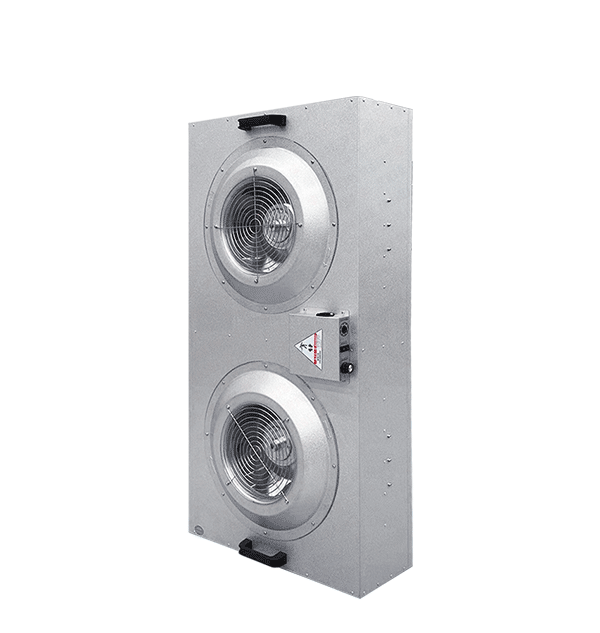

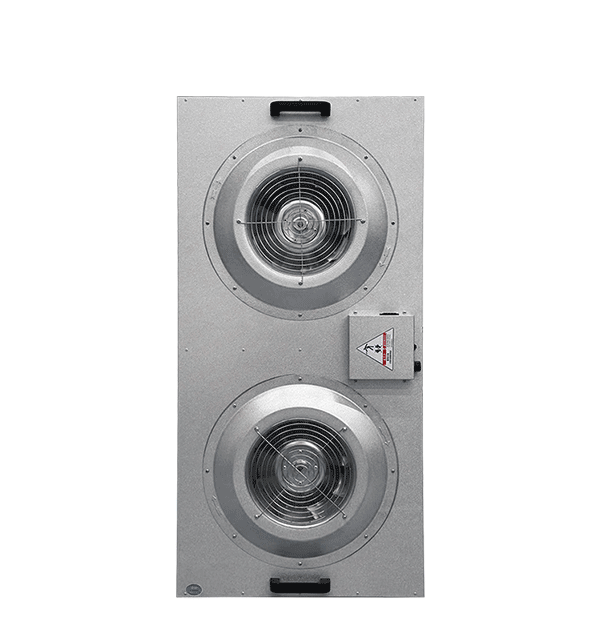

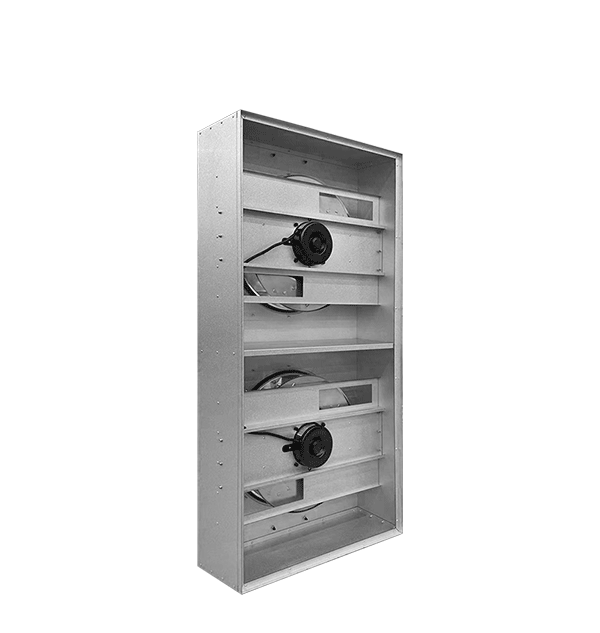

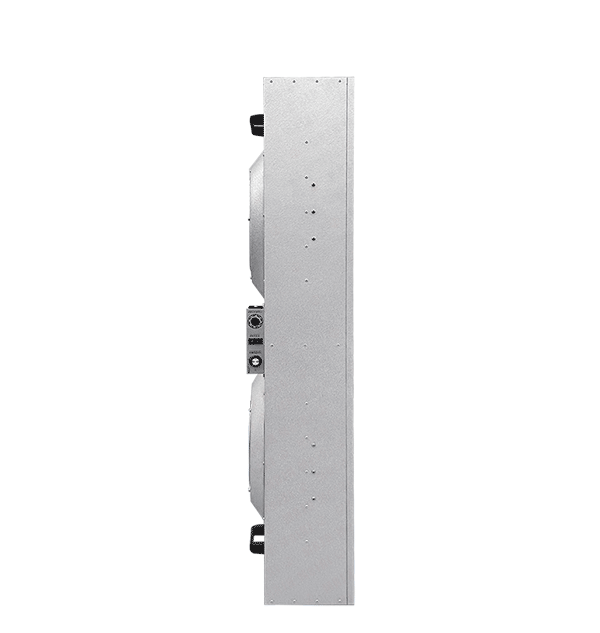

Dual Fans FFU Fan Filter Unit Details
Dual Fans FFU Fan Filter Unit Applications
Dual Fans FFU Fan Filter Unit Parameter
Model |
MRJH-AC2X4SL |
MRJH-DC2X4SDC |
|
Box Size |
1175*1175*215 |
W1175*L1175*H290 |
|
HEPA Size |
1170*1170*69 |
W1170*L1170*H69 |
|
Efficiency |
99.99%-99.9999999%@0.3-0.12um(H13-U17)【class10-class100】 |
||
Air Speed |
0.45-0.75m/s |
||
Noise |
52-58dB±5DB |
||
Motor Life-Span |
Development based on 8 years / factory warranty for 5 years |
||
Housing Material |
Aluminized Zinc Plate/ Powder coated cold rolled Steel plate /SUS 201/SUS 304 (Standard is Aluminized Zinc Plate ) |
||
Power Supply |
220V50Hz(150-190w±5W/motor) |
||
High-Efficiency HEPA |
H13-U17 (standard as H13) |
Dual Fans FFU Fan Filter Unit
-
MaterialAluminum/Cold plate paint/Stainless steel
-
Size2*2/2*4/4*4/Customized
-
OEMYes
-
Warranty2 Years
-
CustomizedFunction/Style
