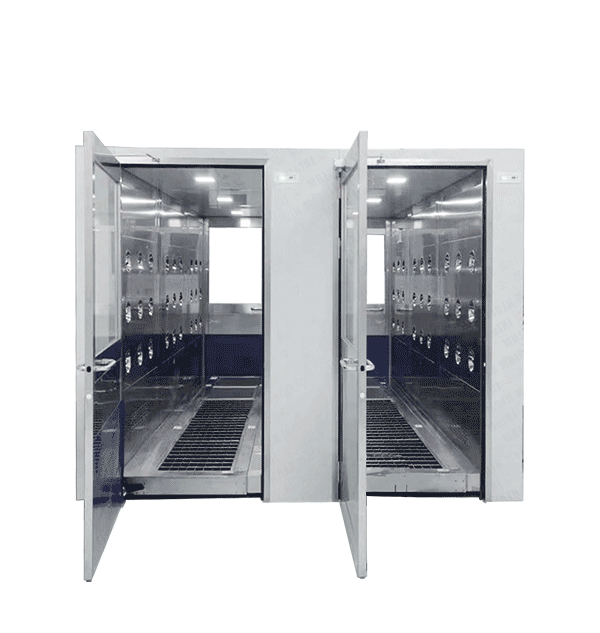

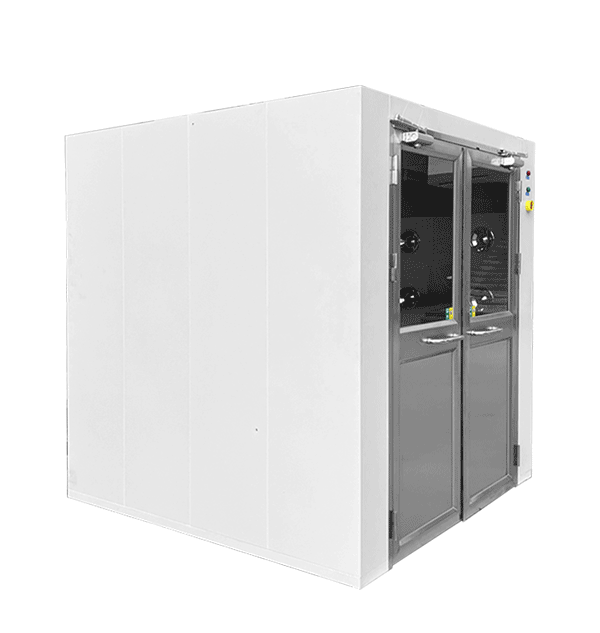

Double Doors Air Shower



Our double-door air shower room combines the 360-degree rotating nozzles, LED lights, multiple material options, high-speed centrifugal fans, LCD control panels, emergency switches, and door closers to provide you with excellent air shower effectiveness and reliable quality. Whether in electronics manufacturing, pharmaceutical production, or laboratory environments, our double-door air shower room ensures a clean, safe, and efficient environment for your process flow.



Double Doors Air Shower



Common features:



Size: Various sizes available. Free design support, you provide the specifications, and we will provide free design service. Production will commence after your confirmation.



Enclosure material:uter cold plate paint/inner stainless steel or all stainless steel



Cleanliness:99.99@0.3um (depending on the environment used)



Air Speed:13-25m/s



Blowing Time:0-99S adjustable (factory setting 10s)



Control Method:voice prompt blowing shower, electronic interlock, photoelectric induction



Emergency button: YES



Fan Power Supply:380V50Hz



Key features of a Double Doors Air Shower include:

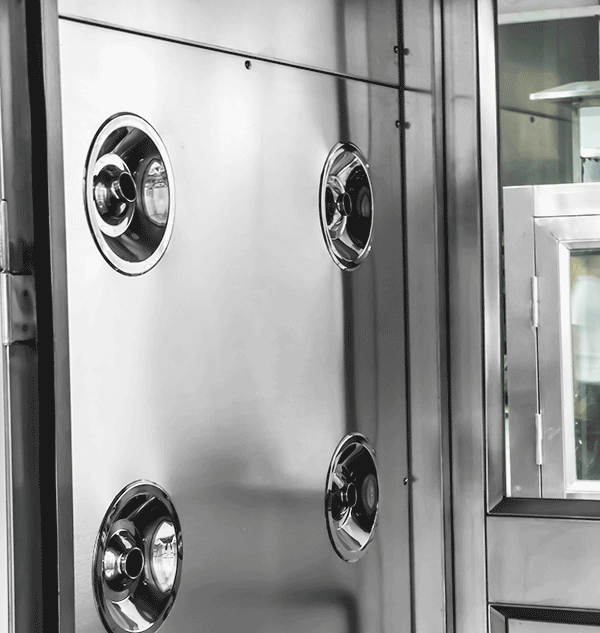

1: 360-Degree Rotating Nozzles
Our double-door air shower room is equipped with 360-degree rotating nozzles to ensure comprehensive airflow coverage. Every corner receives even air showering, thoroughly removing dust and contaminants from the surface of the workpiece, providing a clean environment for subsequent processes.



2: LED Lights
To provide excellent lighting, our double-door air shower room is equipped with high-brightness LED lights. These lights offer clear illumination, allowing you to easily inspect and operate the workpieces inside the air shower room, ensuring high-quality work results.



3: Multiple Material Options
We offer multiple material options to meet different needs. You can choose the suitable material, such as 304 stainless steel, galvanized steel, etc., based on your specific applications and requirements, ensuring durability and suitability of the air shower room.



4: High-Speed Centrifugal Fan
The double-door air shower room is equipped with a high-speed centrifugal fan to ensure strong and uniform airflow. This high-speed airflow efficiently removes particles and contaminants from the surface of the workpiece, providing a clean environment for the process flow.



5: LCD Control Panel
Our double-door air shower room features an LCD control panel that provides an intuitive and easy-to-use interface. You can easily adjust the airflow velocity, time, and other parameters to meet the requirements of different workpieces. The operation is simple and convenient, improving work efficiency.



6: Emergency Switch and Door Closer
To ensure operational safety, the double-door air shower room is equipped with an emergency switch button and high-quality door closers. In case of emergencies, you can immediately cut off the power, and the door closer will automatically close the door, preventing external contaminants from entering and ensuring the safety of you and the workpieces.



Double Doors Air Shower Details


Double Doors Air Shower





Double Doors Air Shower Applications




Double Doors Air Shower



Double Doors Air Shower Parameter



Mode

MRJH-1240X2N304 MRJH-1240X1XQ201 MRJH-1240X2Q201 MRJH-1240X1XQ304 MRJH-1240X2Q304

External size(W*L*H)

1240*2000*2100 1240*1500*2100 1240*2000*2100 1240*1500*2100 1240*2000*2100

Internal size(W*L*H)

790*1860*1930 790*1360*1930 790*1860*1930 790*1360*1930 790*1860*1930

Box material

external cold-rolled steel with paint coating/internal stainless steel   full stainless steel

full stainless steel

Cleanliness level

99.99@0.5um (depending on the environment used)

Air speed

13-25m/s

Air shower duration

Air shower duration

Fan power supply

380V50Hz

Control mode

Voice prompt for blow-off/Electronic interlock/Photoelectric sensing



12 Years Experience || 30,000 Square Meter Factory || Premium Materials





 One-On-One Engineer Service. Welcome you to leave your email.

Double Doors Air Shower

  • Material
    Aluminum/Cold plate paint/Stainless steel
  • Warranty
    2 Years
  • Customized
    Function/Style
  • OEM
    Yes
