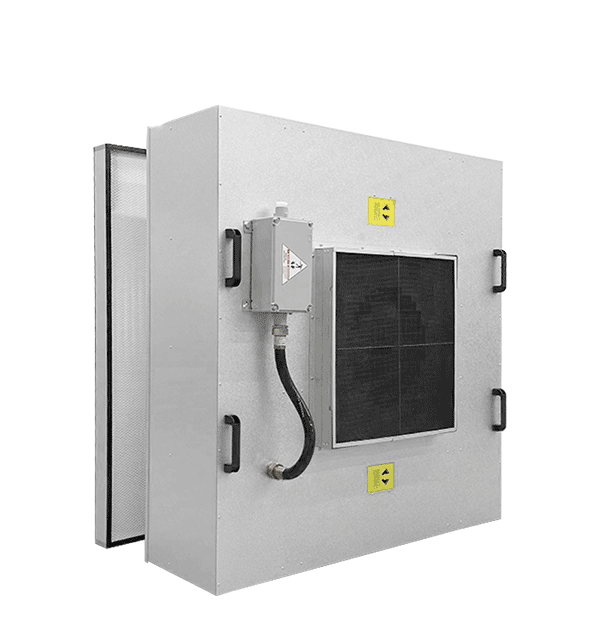

Explosion Proof Fan Filter Unit

1. Explosion Proof Fan Filter Unit box and high-efficiency filter adopt a split design, making installation and replacement more efficient and convenient.

2. It also has the characteristics of energy saving, computer centralized control, stable operation, low noise, and digital adjustment;

3.FFU adopts a unique air duct with uniform wind speed, and the entire air outlet surface is evenly sent out at a wind speed of 0.45M/S;

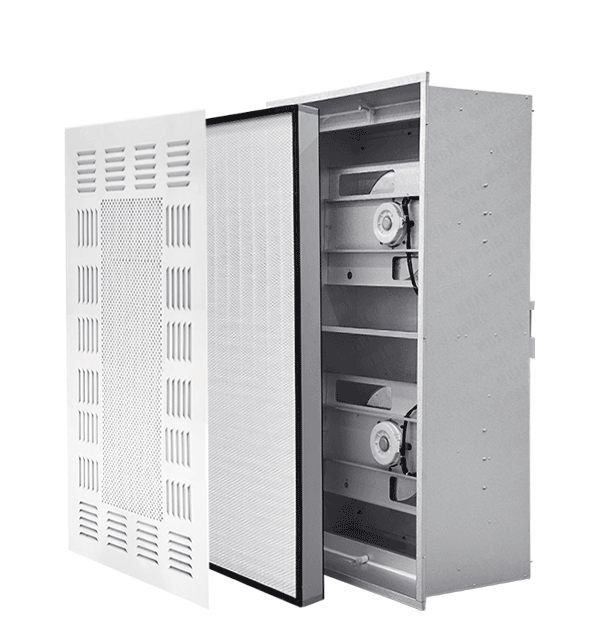

Detachable Fan Filter Unit

Detachable Fan Filter Unit uses an imported motor, which has low power consumption, fast rotation speed, and is easy to disassemble and replace.

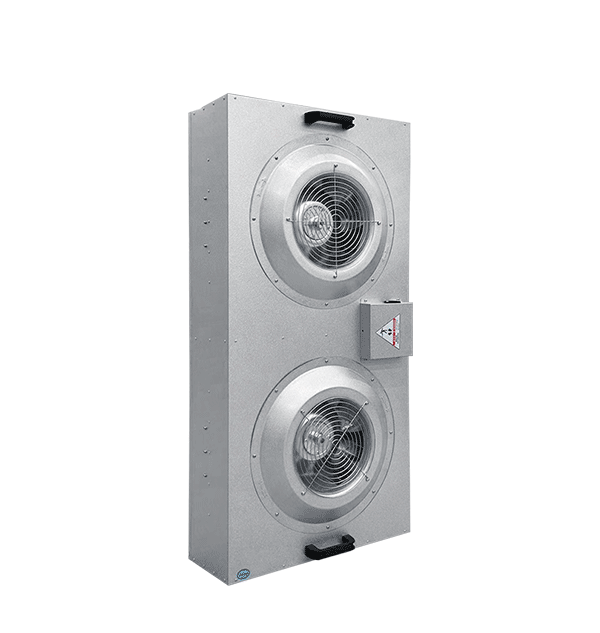

Dual Fans FFU Fan Filter Unit

MRJH Dual Fans FFU Fan Filter Unit is double clean and has super large air volume. The fan filter unit hepa is corrosion-resistant and the fan filter unit for clean room is stronger. Functions and styles can be customized according to customer requirements

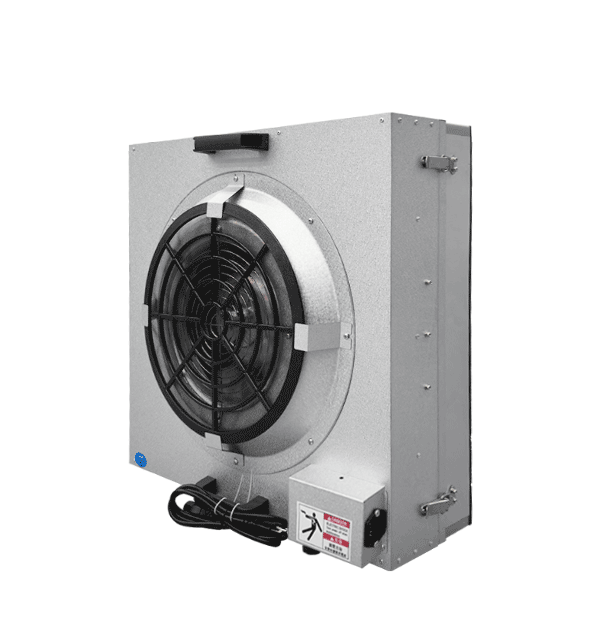

2'x2' Fan Filter Unit

MRJH 2'x2' Fan Filter Unit suitable for 10~10000 level dust-free clean room, facilitates centralized control of overall operation; has the characteristics of waterproof, anti-static, small,etc.

What is an ISO-6 Cleanroom Classification?

ISO-6 cleanroom classification is one of the highest levels of the cleanroom classes. The ISO cleanroom standards are set by the International Organization for Standardization (https://www.iso.org/standards.html). They are a private international organization with a membership of 167 national standards bodies. The ISO cleanroom classification system used in United States primarily for pharmaceutical cleanrooms, medical device cleanrooms, biotech cleanrooms, and life-science cleanrooms. The Europ

NEWS

Biological Safety Cabinets: A Comprehensive Guide to Selection, Usage, and Maintenance

Discover everything you need to know about biological safety cabinets (BSCs): types, working principles, compliance standards, maintenance tips, and how to choose the right BSC for your lab.

넶8 2025-03-10
how does fan filter unit work?

How does fan filter unit work？The working principle is to use the FFU fan filter unit's internal fan (motor + impeller) to suck in air (wind), and the absorbed air (wind) passes through the HEPA (high-efficiency air filter) or ULPA (ultra-high-efficiency filter) filter screen below the FFU, filtering out large particles and dust particles in the air, and finally uniformly delivering the clean air at a wind speed of 0.45m/s ±10% to the clean room.

넶17 2023-11-15

MORE

RECOMMEND PRODUCTS

交流二乘四zt--5

交流二乘四zt--4

交流二乘四zt--3

交流二乘四zt--2

交流二乘四zt--1

넳 넲

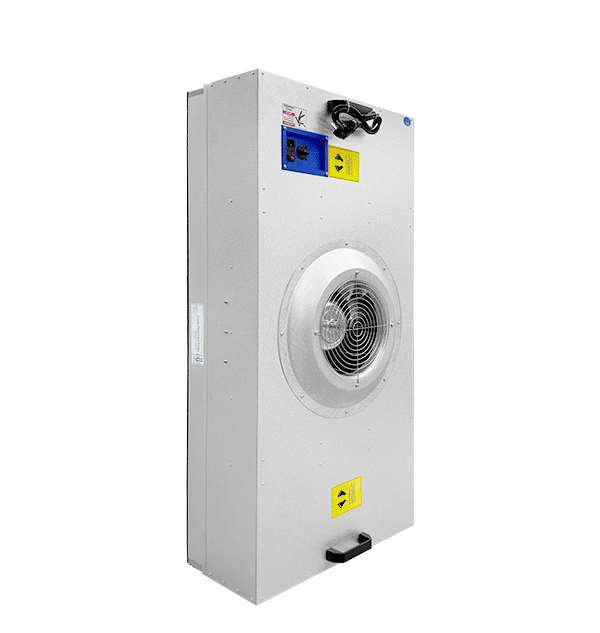

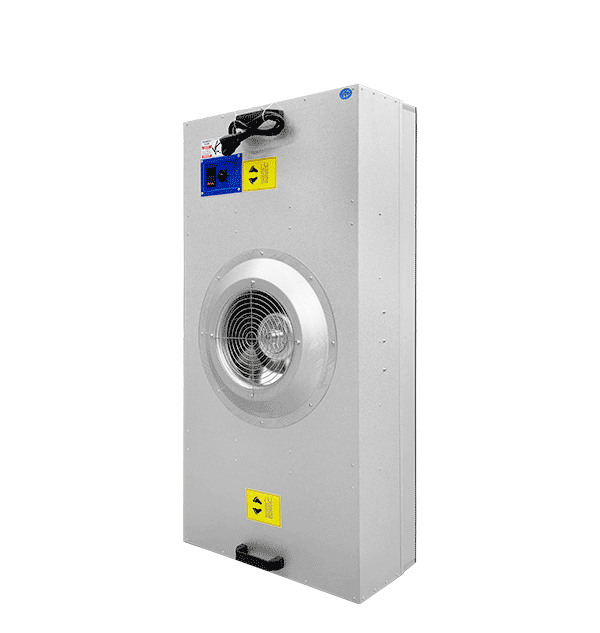

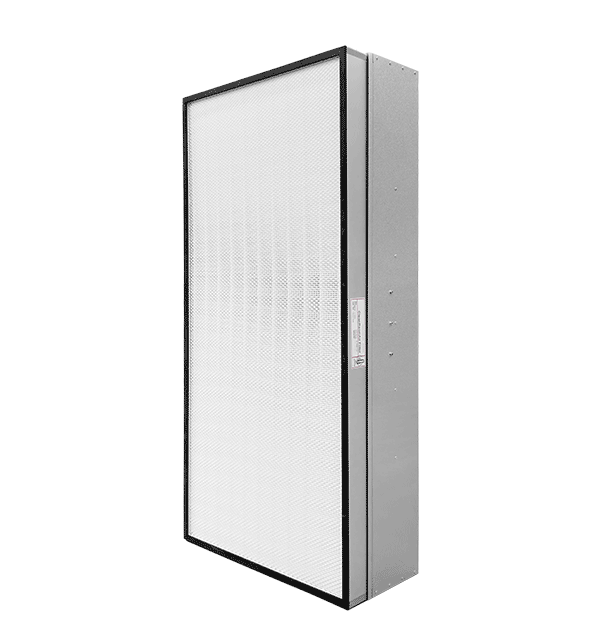

4*2 AC FFU

The 4*2 AC FFU (Fan Filter Unit) is an advanced air filtration system that utilizes alternating current (AC) power supply. It is designed to provide high-quality air filtration and circulation in controlled environments such as cleanrooms, laboratories, and manufacturing facilities.

4*2 AC FFU

Product Introduction:

Product Name	4*2 AC FFU	Frame Size	W1200*L600 (Multiple sizes available, for reference only)
Frame Material	Aluminum-plated plywood (Multiple materials available, for reference only)	Air Velocity	0.45-0.75M/S (Multiple options available, for reference only)
Motor Lifespan	Developed for 8 years, with a 5-year warranty	HEPA Filter Size	W1170L570H69 (Multiple sizes available, for reference only)
Frame Dimensions:	W1175L575H320 (Multiple sizes available, for reference only)	Power Supply	220V 50Hz (Multiple options available, for reference only)
Noise Level	52-58dB (Multiple options available, for reference only)	Cleanliness Level	99.99% @ 0.3-0.12μm

Key features of a 4*2 AC FFU include：

1、Large Area Air Inlet
The large area air inlet allows for better and faster purification efficiency, and it is equipped with a protective cover to effectively safeguard the air inlet.

2、Motor Heat Dissipation Holes
Motor heat dissipation holes are designed to prevent overheating of the motor, ensuring enhanced durability and longevity.

3、Pure Aluminum Frame Filter
The pure aluminum frame filter offers superior quality compared to regular filters. It is less prone to deformation and has a longer lifespan.

4、Imported Motor
The unit is equipped with an imported motor that can operate continuously for 24 hours without generating heat. This significantly improves work efficiency.

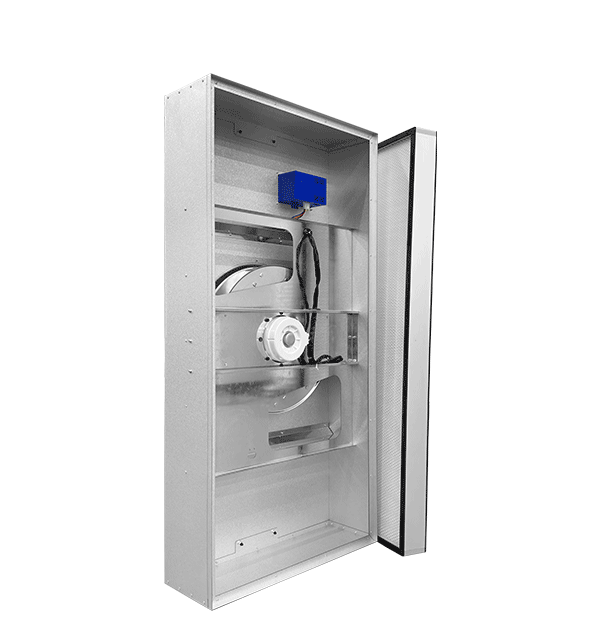

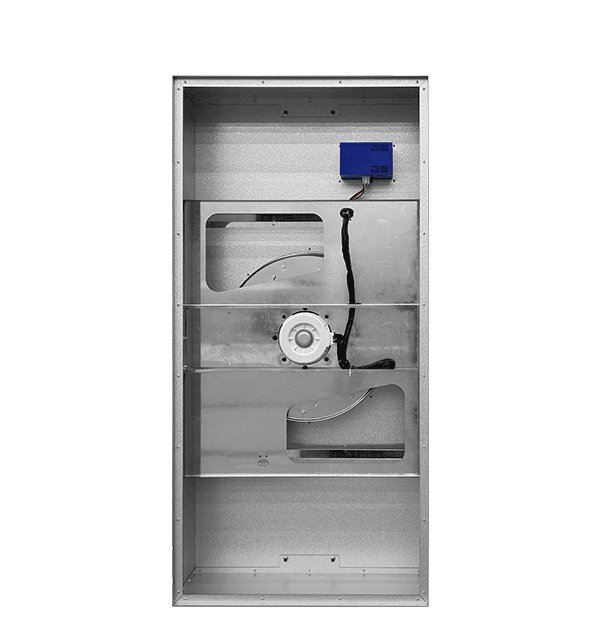

4*2 AC FFU Details

4*2 AC FFU
