4*2 AC FFU

The 4*2 AC FFU (Fan Filter Unit) is an advanced air filtration system that utilizes alternating current (AC) power supply.
Explosion Proof Fan Filter Unit

1. Explosion Proof Fan Filter Unit box and high-efficiency filter adopt a split design, making installation and replacement more efficient and convenient.

2. It also has the characteristics of energy saving, computer centralized control, stable operation, low noise, and digital adjustment;

3.FFU adopts a unique air duct with uniform wind speed, and the entire air outlet surface is evenly sent out at a wind speed of 0.45M/S;
Detachable Fan Filter Unit

Detachable Fan Filter Unit uses an imported motor, which has low power consumption, fast rotation speed, and is easy to disassemble and replace.
Dual Fans FFU Fan Filter Unit

MRJH Dual Fans FFU Fan Filter Unit is double clean and has super large air volume. The fan filter unit hepa is corrosion-resistant and the fan filter unit for clean room is stronger. Functions and styles can be customized according to customer requirements

What is an ISO-6 Cleanroom Classification?

ISO-6 cleanroom classification is one of the highest levels of the cleanroom classes. The ISO cleanroom standards are set by the International Organization for Standardization (https://www.iso.org/standards.html). They are a private international organization with a membership of 167 national standards bodies. The ISO cleanroom classification system used in United States primarily for pharmaceutical cleanrooms, medical device cleanrooms, biotech cleanrooms, and life-science cleanrooms. The Europ

NEWS

Biological Safety Cabinets: A Comprehensive Guide to Selection, Usage, and Maintenance

Discover everything you need to know about biological safety cabinets (BSCs): types, working principles, compliance standards, maintenance tips, and how to choose the right BSC for your lab.

넶8 2025-03-10
how does fan filter unit work?

How does fan filter unit work？The working principle is to use the FFU fan filter unit's internal fan (motor + impeller) to suck in air (wind), and the absorbed air (wind) passes through the HEPA (high-efficiency air filter) or ULPA (ultra-high-efficiency filter) filter screen below the FFU, filtering out large particles and dust particles in the air, and finally uniformly delivering the clean air at a wind speed of 0.45m/s ±10% to the clean room.

넶17 2023-11-15

MORE

RECOMMEND PRODUCTS

ECFFU--4

ECFFU--8

ECFFU--7

ECFFU--6

ECFFU--5

넳 넲

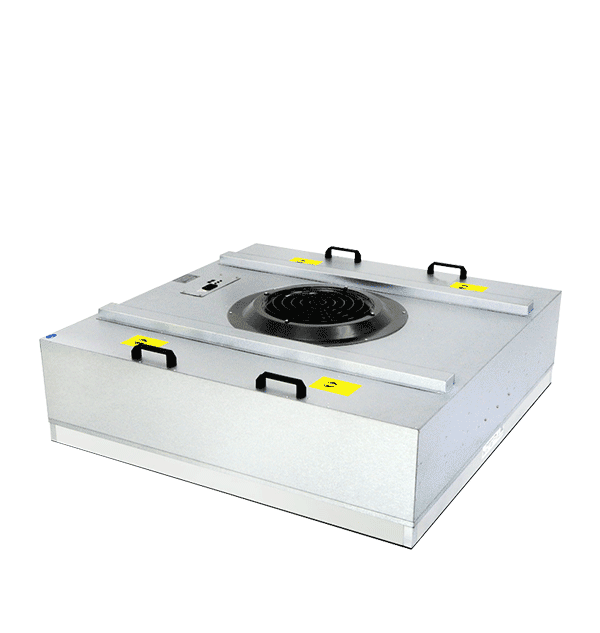

4*2 EC FFU(fan filter unit)

EC networked FFU (Fan Filter Unit) refers to a type of airflow control device commonly used in cleanroom environments. FFUs are designed to provide a localized source of filtered air with controlled airflow velocities, ensuring clean and particle-free environments.

EC networked FFU

Product Introduction:

Product Name	EC networked FFU	Rated Power	130W (Multiple options available, for reference only)
Frame Material	Aluminum-plated plywood (Multiple options available, for reference only)	Air Velocity	0.45-0.75M/S (Multiple options available, for reference only)
Motor Lifespan	Developed for 8 years, with a 5-year warranty	HEPA Filter Size	W1170L1170H69 (Multiple sizes available, for reference only)
Exterior Dimensions	W1175L1175H70 (Multiple sizes available, for reference only)	Rated Voltage	220V (Multiple options available, for reference only)
Noise Level	52-58dB (Multiple options available, for reference only)	Cleanliness Level	99.99% @ 0.3-0.12μm

Key features of a EC networked FFU include：

1. Durable aluminum-zinc plated sheet casing for rust-proof and corrosion-resistant properties.

2. Convenient insulated carrying handle for easy transportation.

3. Safety protective net for added protection from fan blades.

4. High filtration efficiency with the fiberglass filter element.

5. Environmentally-friendly hot melt adhesive used for assembly.

6. Integrated plastic-encased fans offer advantages such as waterproof and dustproof design, noise reduction, improved safety and reliability, easy installation and maintenance, non-heat generation, and overcurrent protection.

EC networked FFU Details

EC networked FFU
