4*2 EC FFU (Fan Filter Unit)

The 4*2 EC FFU (Fan Filter Unit) is an advanced air filtration system that utilizes an electronically commutated (EC) motor for power supply. This type of FFU is designed to provide highly efficient air filtration and circulation in controlled environments such as cleanrooms, laboratories, and manufacturing facilities.

4*2 EC fan filter unit,EC fan filter unit,4*2 EC ffu

Product Introduction:

Product Name	4*2 EC FFU (Fan Filter Unit)	Frame Size	W1200*L600 (Multiple sizes available, for reference only)
Frame Material	Aluminum-plated plywood (Multiple materials available, for reference only)	Air Velocity	0.45-0.75M/S (Multiple options available, for reference only)
Motor Lifespan	Developed for 8 years, with a 5-year warranty	HEPA Filter Size	W1170L570H69 (Multiple sizes available, for reference only)
Frame Dimensions:	W1175L575H320 (Multiple sizes available, for reference only)	Power Supply	220V 50Hz (Multiple options available, for reference only)
Noise Level	52-58dB (Multiple options available, for reference only)	Cleanliness Level	99.99% @ 0.3-0.12μm

Key features of a 4*2 EC FFU (Fan Filter Unit) include：

1、Large Area Air Inlet: The unit features a spacious air inlet that enhances purification efficiency. It is equipped with a protective cover for added safety.

2、Pure Aluminum Frame Filter: The high-quality pure aluminum frame filter demonstrates superior durability and a longer lifespan compared to standard filters.

3、Imported Motor: The unit is equipped with a reliable imported motor that operates continuously without generating heat, significantly improving work efficiency.

4、Advantages of integrated plastic-encased fans include waterproof and dustproof design, noise reduction, improved safety and reliability, easy installation and maintenance, non-heat generation, and overcurrent protection.

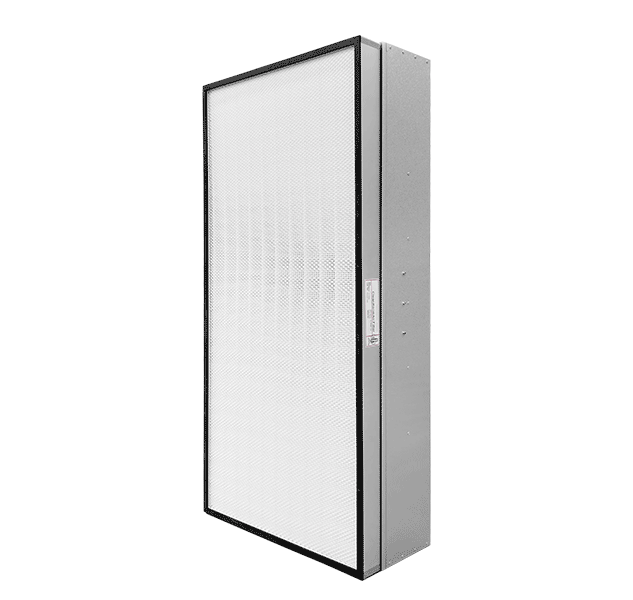

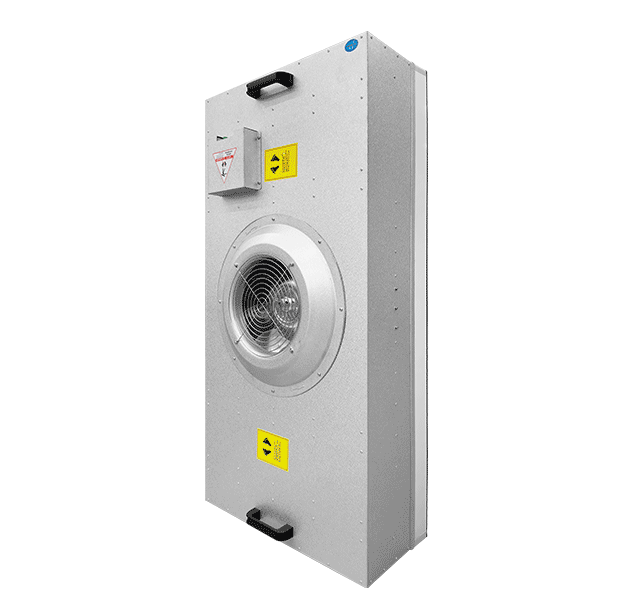

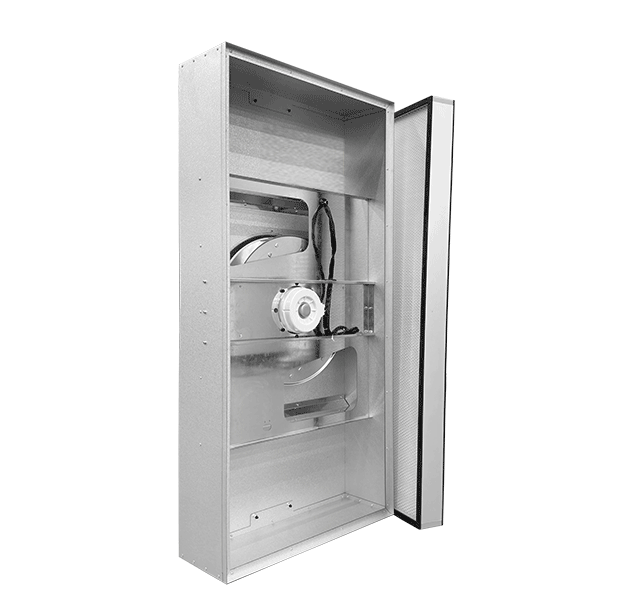

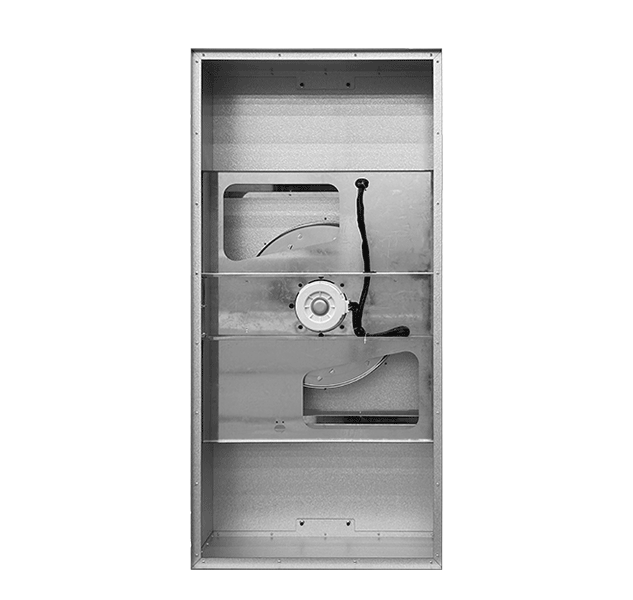

4*2 EC FFU (Fan Filter Unit) Details

4*2 EC fan filter unit,EC fan filter unit,4*2 EC ffu
